Dry Impregnation/Chemical Dispensing Systems

MEI offers both liquid injection and dry impregnation equipment. Our standard packages can be configured to your specific formula.  If you have very specific requirements, we have a team of in-house engineers who can help you build a system from the ground up. Call today for more details.

Standard Pump & Meter Stand

Only have a single chemical you need to dispense and/or inject into a dry blend? Like our multi-product stands, these versatile systems are engineered to provide the accuracy, precision, and speed you need.

  • 2” x 2” self-priming centrifugal cast iron pump
  • 5 hp, single phase, 3600 TEFC electric motor (3 phase is optional)
  • NTEP certified, weights and measures approved 682 TCS AF cast iron meter
  • 5-wheel resettable head with totalizer
  • Tubular steel stand
  • This system has sufficient valves and fittings to direct product either through the meter to loadout or back to the tank for recirculation.

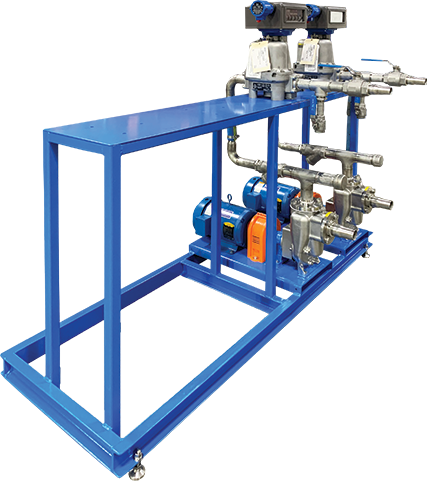

Stainless Steel Pump & Meter Stand

  • 2” x 2” self-priming centrifugal stainless steel pump
  • 5 hp, single phase, 3600 TEFC electric motor (3 phase is optional)
  • NTEP certified, weights and measures approved 682 TCS 316 stainless steel meter
  • 5-wheel resettable head with totalizer
  • EPDM elastomers are optional
  • Tubular steel stand
  • This system has sufficient valves and fittings to direct product either through the meter to loadout or back to the tank for recirculation.

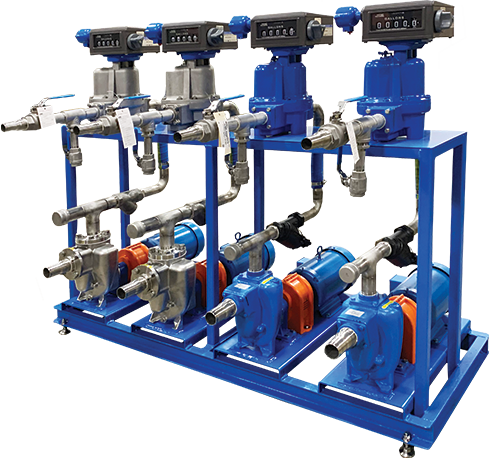

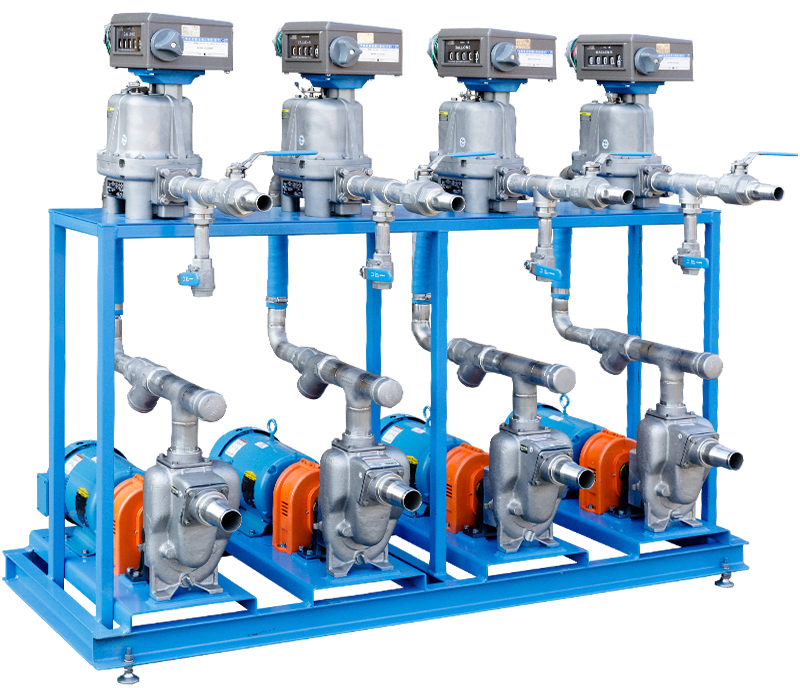

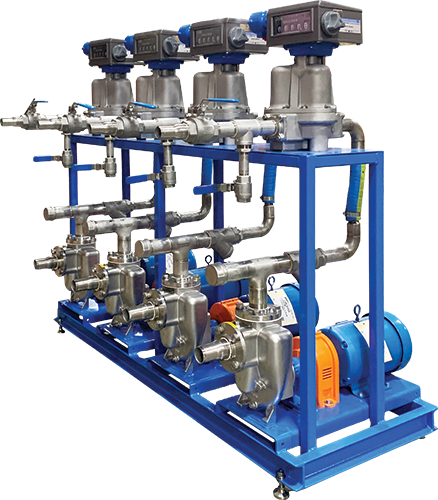

Multi-Product Pump & Meter Stand

multi product pump and meter stand

Need to inject multiple chemicals into your dry fertilizer blends? Or, are you a chemical dealer in need of an efficient dispensing solution? Either way, these dual-purpose multi-product pump and meter stand gives you the accuracy, precision, and speed you need to deliver and/or inject liquids.All meters are NTEP-approved for the resale of chemicals.

2 or 4 Pumps:

  • 2” x 2” self-priming centrifugal cast iron pumps
  • 5 hp, single phase, 3600 TEFC electric motor

2 or 4 Meters:

  • NTEP certified, weights and measures approved 682 TCS AF cast iron meter
  • 5-wheel re-settable head with totalizer

Plumbing:

  • 304 stainless steel pipe
  • 304 stainless steel strainer with 1/8 perforation filter
  • 304 stainless steel flex hose
  • 1 or 2 manual service valves

All parts are mounted on a tubular steel stand
