Dike/Catwalk Stairs
Improve the safety of your facility with these high-quality dike and catwalk stairs.
Dike & Catwalk Stairs
Dike or Catwalk // IBC or OSHA Standards // Made in USA
Prioritize employee safety with these dike and catwalk stairs. Manufactured in-house at our Fort Wayne, Indiana headquarters, these stairs are constructed with the same quality you've come to know and trust.
Configuration is simple. Choose your standard, orientation, and height—and we’ll ensure your system is built to fit your exact requirements.
Dike/Catwalk Stair Configurator
STR OSHCAT9108
OSHA stairs for a catwalk set at 90 degrees. 108in tall.
In this part number configurator, you can create a part number to reference when requesting a dike or catwalk system quote.
In digit 8-10, you set the height you need for the stair based on inches. The height and the regulations you decide on contribute to the length of the stair. You are limited to three digits. If the height is only two digits, please place a zero before the number. Example 96 inches would be 096.
Regulation Standard
OSHA or IBC
Digits 1-3
OSH
OSHA Regulations
IBC
IBC Regulations
System Type
Catwalk or Dike
Digits 4-6
CAT
Catwalk Stairway
DIK

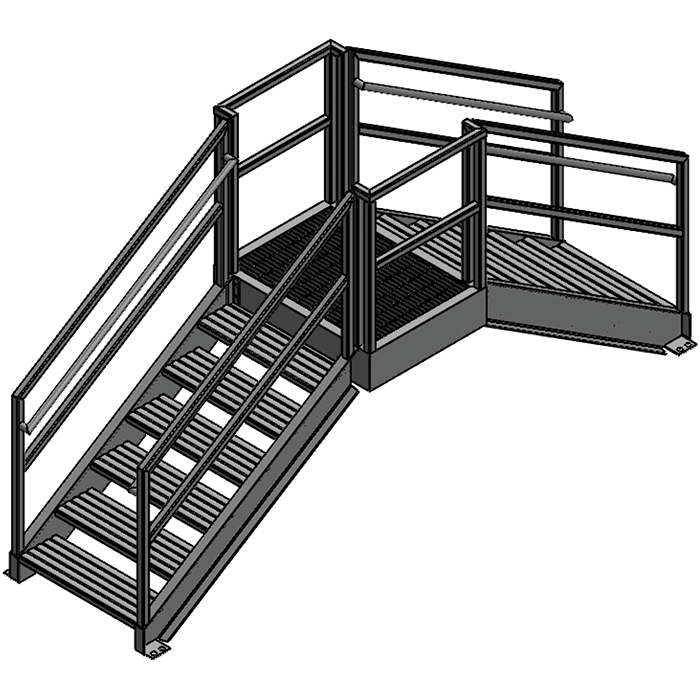

Dike Stairway
Orientation
Perpendicular or parallel to dike or catwalk system
Digit 7
9

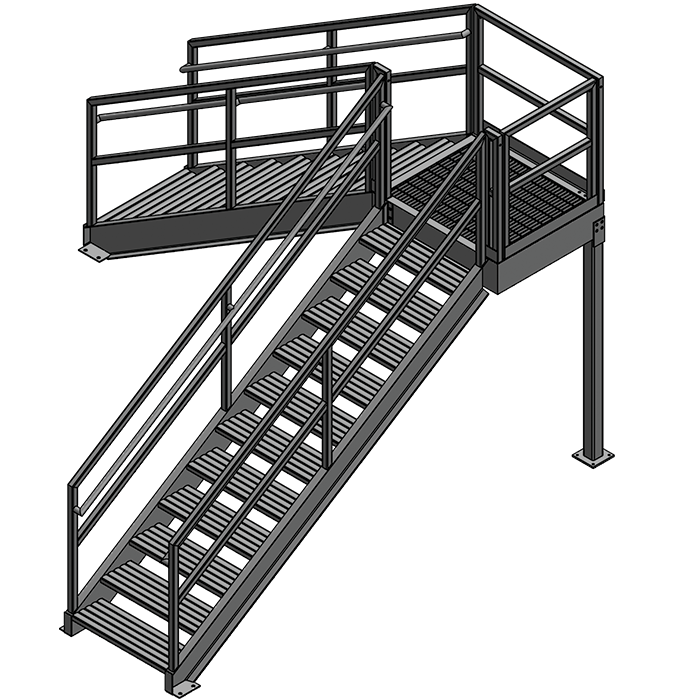

90 Degree/Perpendicular
8
180 Degree/Parallel
Height of Stairs
Multiply step/riser height by number of steps. 8ft or 96in would be 096.
Digits 8-10
000-999
Inches (use all 3 digits. e.g. 096 is 96in)
1-3
4-6
7
8-10
STR
Want a quote?
Click the button to fill out a form with a part number and request a quote.
STR OSHCAT9108
OSHA stairs for a catwalk set at 90 degrees. 108in tall.
OSHA vs IBC a Comparison

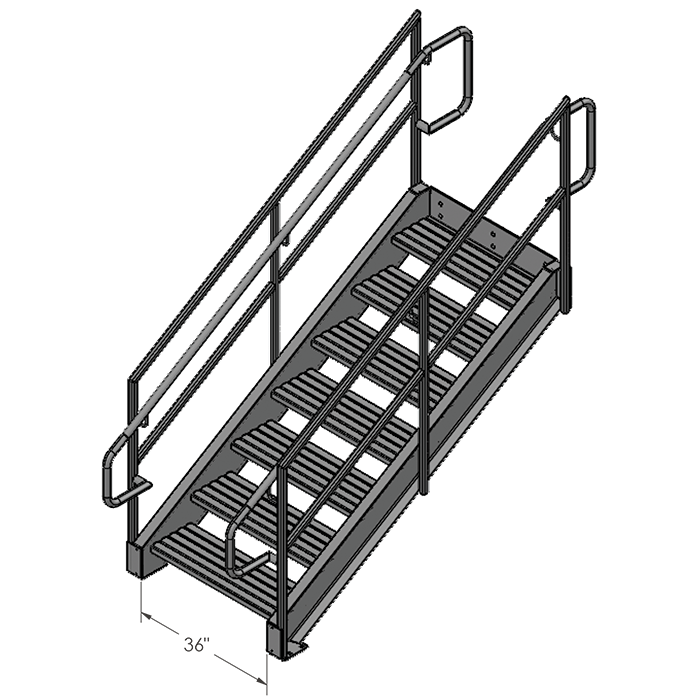

IBC Standards
IBC: International Building Code
Riser
4”-7” high solid risers in most cases
Tread/Run
11” tread depth
Stair
44” wide stair or 36” wide (under 50 people)
Handrail
34”-38” high
Guardrail
42” high
Balusters
6’ max gap
Landings
Stair width and at least 48” deep landing top, bottom, and every 12’

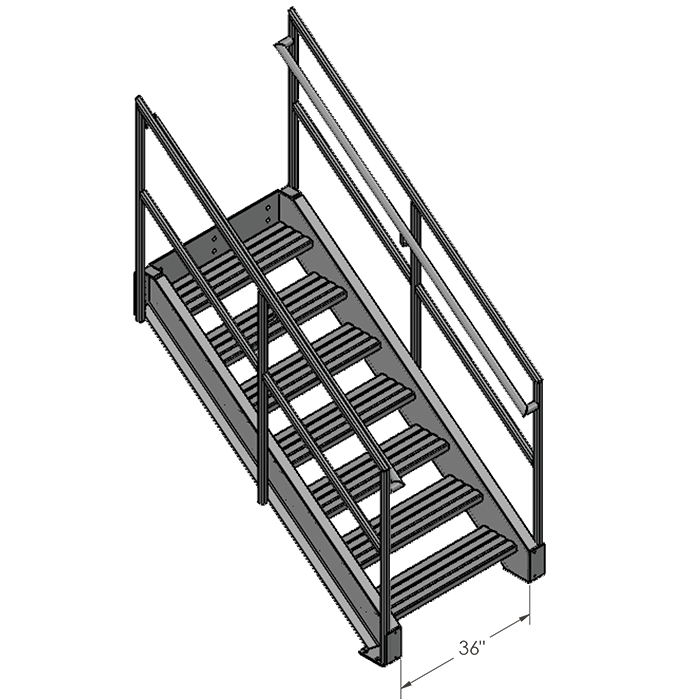

OSHA Standards
OSHA: Occupational Safety and Health Administration
Riser
9.5” max height open risers allowed
Tread/Run
9.5” tread depth
Stair
22” min width
Handrail
34”-38” high
Guardrail
42” high
Balusters
6’ max gap
Landings
Stair width and at least 30” in depth
